Nodejs API

Introduction

Developers will call our SDK in the Scriptlet Block to interact with the OOCANA workflow engine. This document provides a detailed introduction to the API usage.

Quick Start

When using the SDK in the Scriptlet Block, you need to import the Context object and call the relevant APIs through it.

Scriptlet Template

Below is the template function for a Scriptlet, where you should write your execution code. The input and output types can be customized, and third-party libraries can be imported.

To pass data to subsequent blocks, simply return a dictionary as you would in a normal function. OOCANA will use the top-level keys as the corresponding output handles, and the values as the output for those handles.

import type { Context } from "@oomol/types/oocana";

type Inputs = {
  input: unknown;
};
type Outputs = {
  output: unknown;
};

export default async function (
  params: Inputs,
  context: Context<Inputs, Outputs>
): Promise<Outputs> {
  // Your code will be executed here

  return { output: null };
}

Common APIs

Here's a list of commonly used APIs:

  readonly output: {
    /**
     * @param handle Output handle
     * @param output Output value
     */
    <THandle extends Extract<keyof TOutputs, string>>(
      handle: THandle,
      output: TOutputs[THandle]
    ): Promise<void>;
  };

  /**
   * Report block outputs. it can report multiple output at once.
   * @param map map can be a partial object of TOutputs
   * @returns
   */
  readonly outputs: (map: Partial<TOutputs>) => Promise<void>;

  /**
   * reporter block finish. it can contain error or result.
   * if contains error, it will be treated as block failed and ignore result argument
   * if contains result, it will be treated as success
   * otherwise, it will be treated as success and no result will be reported.
   */
  readonly finish: (
    arg?: { result?: any; error?: never } | { result?: never; error?: unknown }
  ) => Promise<void>;

  /** Enable preview */
  readonly preview: (payload: PreviewPayload) => Promise<void>;
  /** Temporary directory for the entire session, users can use it to store temporary files */
  readonly sessionDir: string;
  /** Report progress, progress 0~100, this function is throttled to trigger every 300ms. */
  readonly reportProgress: (progress: number) => Promise<void>;

Context.preview Types

context.preview is a core API. Its main function is to help developers preview data. We support previews for almost all common data types.

PreviewPayload Types

Function name: context.preview

    readonly preview: (payload: PreviewPayload) => Promise<void>;

Parameter type: PreviewPayload

type PreviewPayload =
  | {
      type: "video" | "audio" | "markdown" | "iframe" | "html";
      data: string;
    }
  | {
      type: "json" | "text" | `text/${string}`;
      data: any;
    }
  | {
      type: "image";
      data: string | string[];
    }
  | {
      type: "table";
      data: {
        columns: Array<string | number>;
        rows: Array<Array<string | number | boolean>>;
        row_count?: number;
      };
    };

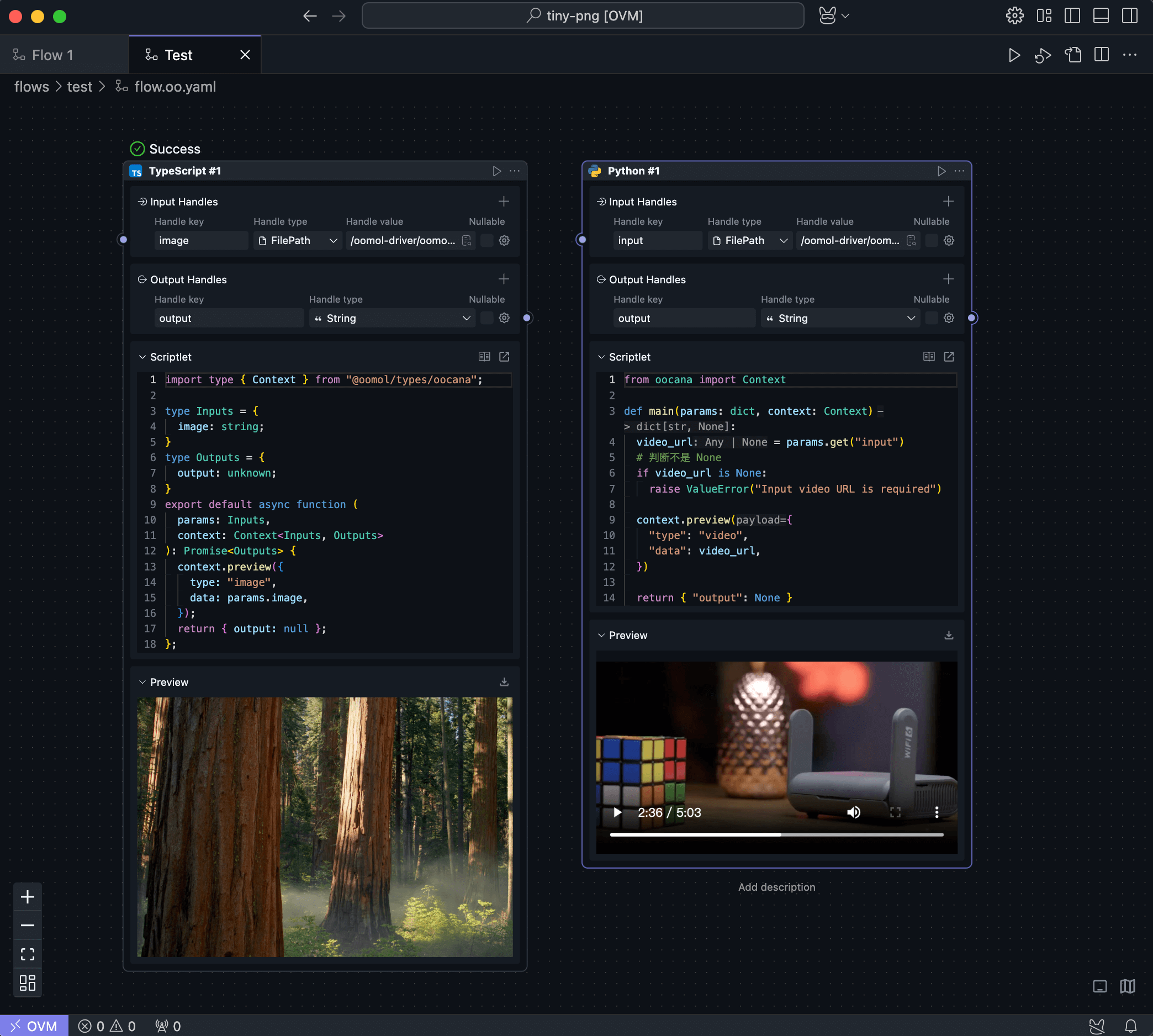

Preview Example

await context.preview({
  type: "video",
  data: "https://www.youtube.com/watch?v=6g4dkBF5anU",
});

Detailed Types of Context Object

The API type descriptions provided by the OOCANA SDK help users understand how to use these APIs accurately. You can open the editor to see detailed type hints.

interface Context<
  TInputs = Record<string, any>,
  TOutputs = Record<string, any>,
> {
  readonly sessionId: string;
  readonly jobId: string;
  readonly block_path: string;
  readonly stacks: readonly BlockJobStackLevel[];
  readonly inputs: TInputs;
  readonly output: {
    <THandle extends Extract<keyof TOutputs, string>>(
      handle: THandle,
      output: TOutputs[THandle]
    ): Promise<void>;
    /**
     * @deprecated This method will be removed in the future. Please use the function without the done parameter. If you want to report block completion, please use context.done().
     * Report block output.
     * @param handle Output handle
     * @param output Output value
     * @param done Will be removed. Report block completion.
     */
    <THandle extends Extract<keyof TOutputs, string>>(
      handle: THandle,
      output: TOutputs[THandle],
      done: boolean
    ): Promise<void>;
  };
  /** Report block completion */
  readonly done: (err?: any) => Promise<void>;
  /** Report log */
  readonly logJSON: (jsonValue: unknown) => Promise<void>;
  /** Report an error */
  readonly error: (error: unknown) => Promise<void>;
  /** Report additional block messages */
  readonly sendMessage: (payload: unknown) => Promise<void>;
  /** Send to preview */
  readonly preview: (payload: PreviewPayload) => Promise<void>;
  /** Report block's stdio and stdout messages */
  readonly reportLog: (
    payload: string,
    stdio: "stdout" | "stderr"
  ) => Promise<void>;
  /** Temporary directory for the entire session, all blocks in a session will share the same directory */
  readonly sessionDir: string;
  /** Report progress, progress 0 ~ 100, this function is throttled to trigger every 300ms */
  readonly reportProgress: (progress: number) => Promise<void>;
  readonly keepAlive: KeepAlive;
}

More Use Cases

Please refer to the project Node.js Use Cases.

You can clone this project locally and open it with OOMOL Studio. The flows in this project include most of the usage methods for the Context API.
